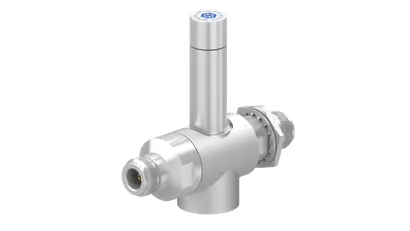

COAXIAL SURGE PROTECTOR DEVICE, Quarter-wave stub technology, NEMP tested

Name: COAXIAL SURGE PROTECTOR DEVICE, Quarter-wave stub technology, NEMP tested
SKU: 23034907
Availability: InStock

Product number 23034907

Identifier 3400.17.0385

Variation: -

Key features

Product configuration

Interface and material data

Electrical data

Impedance	50 Ω
Frequency frame	830 MHz to 1650 MHz
Return loss typical	≥ 21 dB
Insertion loss typical	≤ 0.1 dB
CW power frame	≤ 500 W
Peak power frame	≤ 10000 W
Residual pulse energy (typ.)	4 µJ LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) 60 µJ NEMP (test pulse 6 kV 5/200 ns)
Residual pulse voltage (typ.)	6 V LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) 335 V NEMP (test pulse 6 kV 5/200 ns)
Surge current handling capability	50 kA multiple (test pulse 8/20 µs) 25 kA multiple (test pulse 10/350 µs)

Electrical remarks

Mechanical data

Environmental data

Main path connectors	Port 1: unprotected, N jack (female) Port 2: protected, N jack (female)
Mounting and grounding	MH25 (bulkhead mounting), M8 (screw)
Side of bulkhead	protected side
EMP can be install reversed	YES

Housing material / plating	Brass / SUCOPLATE (R) Plating
Center contact, material / plating	Port 1: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating)

Gas tube	No DC / shorted QW or LC
Electrical remarks	Frenquency range 830 MHz - 1650 MHz RL: 24 dB (typ.); IL: 0.05 dB (typ.)

Weight	334 g
Mating cycles	500

Operation temperature	-40 °C ... 85 °C
Storage temperature	-40 °C ... 85 °C
Ingress protection (IP Rating)	Mated / IP65, according to IEC 60529
Thermal shock according	MIL-STD-202, Method 107, Cond. B
Vibration according	MIL-STD-202, Method 204, Cond. A
Moisture resistance according	MIL-STD-202, Method 106

Product code	3400.17.0385
Product description	Quarter-wave stub technology
