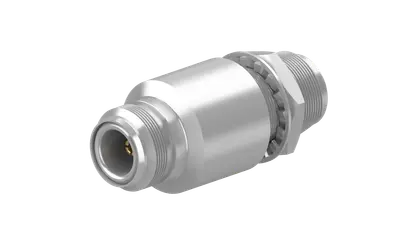

COAXIAL SURGE PROTECTOR DEVICE, Slim Line GDT technology

Name: COAXIAL SURGE PROTECTOR DEVICE, Slim Line GDT technology
SKU: 22649568
Availability: InStock

Product number 22649568

Identifier 3406.17.0002

Variation: -

Key features

Product configuration

Interface and material data

Electrical data

Electrical remarks

Mechanical data

Environmental data

Main path connectors	Port 1: unprotected, N jack (female) Port 2: protected, N jack (female)
Mounting and grounding	MH24 (bulkhead mounting)
Side of bulkhead	protected side
Inline design	YES
EMP can be install reversed	YES

Housing material / plating	Brass / SUCOPLATE (R) Plating
Center contact, material / plating	Port 1: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating)

Impedance	50 Ω
Frequency frame	0 MHz to 3000 MHz
Return loss typical	19 dB
Insertion loss typical	0.2 dB
CW power frame	80 W
Static spark voltage	230 V, +/- 25 % (@ 100 V/s)
Residual pulse energy (typ.)	350 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)
Surge current handling capability	10 kA single, 5 kA multiple (test pulse 8/20 µs)

Operation temperature	-40 °C ... 85 °C
Storage temperature	-40 °C ... 85 °C
Ingress protection (IP Rating)	IP20
Thermal shock according	MIL-STD-202, Method 107, Cond. B
Vibration according	MIL-STD-202, Method 204, Cond. D
Moisture resistance according	MIL-STD-202, Method 106

Product code	3406.17.0002
Product description	Slim Line GDT technology
