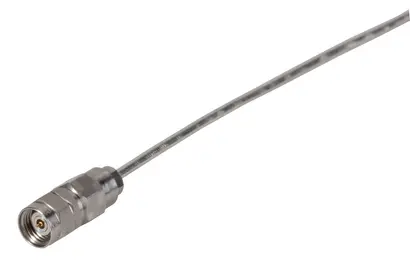

Hand formable (RG403) 50Ohm, 40GHz, 85°C, ø3.2mm LSFH jacket

Name: Hand formable (RG403) 50Ohm, 40GHz, 85°C, ø3.2mm LSFH jacket
SKU: 22512147
Availability: InStock

Product number 22512147

Identifier SUCOFORM_86_LSFH

Variation: -

Key features

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Steel, Copper + Silver plated	Wire	0.53 mm
Dielectric	PTFE (Polytetrafluoroethylene)		1.65 mm
Outer conductor	Copper, Tin plated	Tin soaked braid, 100%	2.1 mm
Jacket	LSFH (modified polyethylene)	RAL 9005 - bk	3.2 mm +/- 0.1 mm	HUBER+SUHNER SUCOFORM 86 LSFH (PA no.)

Electrical data

Mechanical data

Environmental data

Product code	SUCOFORM_86_LSFH
Cable family	Sucoform: Formstable, hand-formable alternatives to semi-rigid microwave cables
Available as assembly only	No
Cable group	Y16

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 40 GHz
Capacitance	95 pF/m
Velocity of signal propagation	71 %
Signal delay	4.7 ns/m
Screening effectiveness	100 dB at frequency 0.1 GHz ... 18GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	199 Ω/km
Outer conductor resistance	39 Ω/km
Operating Voltage (at sea level)	≤ 1.5 kVrms
Test voltage (50 Hz/1 min)	≤ 3 kVrms
