Low-loss, 50 Ohm, 8 GHz, 105°C, ø5.5 mm, RADOX® jacket

Product number 84026748

Identifier SX_04172_B-60

Variation: -

General Information

Key features

Flexible RF cable for low loss applications
Custom alternative to standard SPUMA cables
Ozone, UV and weathering resistance
Railway qualified
UL AWM style 1354

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper, Silver plated	Wire	1.4 mm
Dielectric	SPEX (Crosslink Foam PE)		3.8 mm
Outer conductor	Aluminum / PES	longitudinal Foil, 100%	4.2 mm
Outer conductor	Copper, Tin plated	Braid, 86%	4.6 mm
Jacket	RADOX	RAL 9005 - bk	5.5 mm +/- 0.1 mm	HUBER+SUHNER SX04172B-60 50Ohm (UL logo) AWM Style1354 IEC60332-3-22 (production order number)

Electrical data

Mechanical data

Environmental data

Related products

Suitable connectors

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

84098543

11_716-50-4-5/033_-Y

Tray packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

85071464

16_BNC-50-4-16/133_NH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22649863

11_BNC-50-4-53/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22660156

11_BNC-50-4-28/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84068115

11_BNC-50-4-29/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22645021

16_N-50-4-53/199_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651019

16_N-50-4-114/133_UH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84023979

16_N-50-4-115/133_UH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22644946

24_N-50-4-53/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22651789

24_N-50-4-17/133_UE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85018527

24_N-50-4-10/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22658836

21_N-50-4-76/133_UH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

84110983

21_N-50-4-6/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22645935

11_N-50-4-55/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22651679

11_N-50-4-160/133_UH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22652069

11_N-50-4-63/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22658708

11_N-50-4-63/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22660149

11_N-50-4-9/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84026255

11_N-50-4-10/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84110888

11_N-50-4-11/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

23003442

25_N-50-4-6/133_UH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23041666

16_QMA-50-4-2/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84023140

16_QMA-W50-4-5/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84075864

16_QMA-W50-4-5/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

84013207

24_QMA-50-4-1/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable jack (female)

84096247

21_QMA-50-4-2/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84000234

11_QMA-50-4-2/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84023153

11_QMA-W50-4-3/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84075865

11_QMA-W50-4-3/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

85123642

11_QMA-50-4-2/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84038217

16_QN-50-4-3/133_NH

Bulk packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23040776

24_QN-50-4-1/133_NH

Bulk packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23040813

11_QN-50-4-1/133_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22644654

16_SMA-50-4-55/199_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

23012056

16_SMA-50-4-160/133_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84117813

16_SMA-50-4-50/133_NP

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130714

16_SMA-50-4-50/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22644409

21_SMA-50-4-52/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22644342

11_SMA-50-4-53/139_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

23012055

11_SMA-50-4-61/133_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

23015123

11_SMA-50-4-63/139_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84112519

11_SMA-50-4-50/133_NP

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84130705

11_SMA-50-4-50/133_NE

Single packaging

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

84027004

11_SMA-R50-4-97/133_NH

Bulk packaging

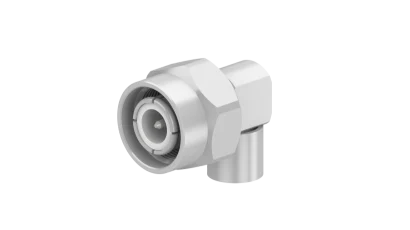

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

84082686

16_TNC-50-4-21/033_-I

Missing product short name

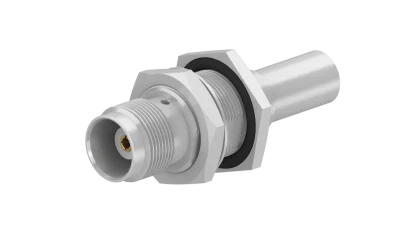

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

22644938

24_TNC-50-4-52/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84119563

21_TNC-50-4-16/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

85159704

21_TNC-50-4-18/133_NE

Single packaging

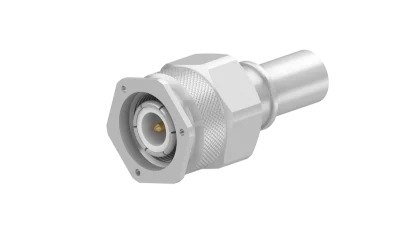

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22644434

11_TNC-50-4-52/133_NE

Single packaging

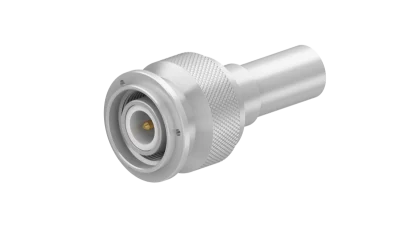

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22658177

11_TNC-50-4-115/133_UH

Bulk packaging

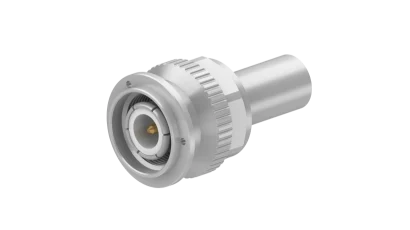

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

84130594

11_TNC-50-4-61/133_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

85071433

11_TNC-50-4-78/133_NE

Single packaging

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

84031534

11_TNC-R50-4-76/133_NE

Single packaging

Product code	SX_04172_B-60
Cable family	SX: Low loss RF cables with cross-linked foam PE dielectrics
Available as assembly only	No
Cable group	X9

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 8 GHz
Capacitance	80.3 pF/m
Velocity of signal propagation	83 %
Signal delay	4.01 ns/m
Screening effectiveness	80 dB at frequency 0.01 GHz ... 2.2GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	11.4 Ω/km
Operating Voltage (at sea level)	≤ 0.7 kVrms
Voltage Rating UL	30 V
Test voltage (50 Hz/1 min)	≤ 1.4 kVrms

Weight	approx. 47.8 g/m
Static bending radius	≥ 25 mm
Repeated bending radius	90 mm

Operation temperature	-40 °C ... 105 °C
Flame propagation standard	EN 60332-1-2 EN 50305, 9.1.2 NF C32-070 C2 NF C 32-070 C1
Fire characteristics	free of halogenes, acc. standard IEC 60754
Smoke test	EN 61034-2
Toxicity test	NF X 70-100
