RG214, 50 Ohm, 6 GHz, 85°C, ø10.8 mm, PVC jacket

RG214, 50 Ohm, 6 GHz, 85°C, ø10.8 mm, PVC jacket

Product number 22512156

Identifier RG_214_HIFLEX

Variation: -

General Information

Key features

Highly flexible version of RG_214
Excellent RF performance for precision applications
Suitable for use in application up to 6 GHz

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper, Silver plated	Strand-19, 93%	2.25 mm - 0.15 mm
Dielectric	TPO (Olefine TPE)		7.3 mm
Outer conductor	Copper, Silver plated	Braid, 93%	8 mm
Outer conductor	Copper, Silver plated	Braid, 95%	8.7 mm
Jacket	PVC II (low migration)	RAL 9005 - bk	10.8 mm +/- 0.15 mm	HUBER+SUHNER RG 214 HiFlex 50 Ohm (production order number)

Electrical data

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 6 GHz
Capacitance	101 pF/m
Velocity of signal propagation	66 %
Signal delay	5.03 ns/m
Screening effectiveness	70 dB at frequency 0.001 GHz ... 1GHz
Insulation resistance	100000000 MΩ*m
Outer conductor resistance	3.9 Ω/km
Operating Voltage (at sea level)	≤ 5 kVrms
Phase vs temperature	16200 ppm within the temperature range -40 ... 80 °C
Phaase vs bending	5 °/GHz
Test voltage (50 Hz/1 min)	≤ 10 kVrms

Mechanical data

Environmental data

Related products

Suitable connectors

11_UHF-0-7-18/033_-

22542745

11_UHF-0-7-18/033_-E

-

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

22658839

16_716-50-7-10/003_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable jack (female)

22544093

21_716-50-7-2/003_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

22544074

11_716-50-7-2/003_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

22544076

11_716-50-7-4/003_-E

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22651588

16_BNC-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540149

11_BNC-50-7-2/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22640863

11_BNC-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, C, 50 Ohm, Right angle cable plug (male)

22541185

16_C-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable jack (female)

22543427

21_C-50-7-3/122_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541137

11_C-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541144

11_C-50-7-15/133_NE

Single packaging

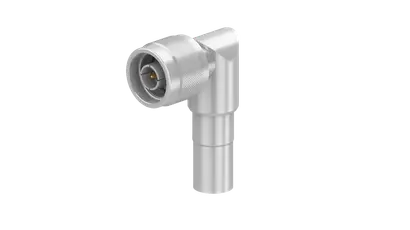

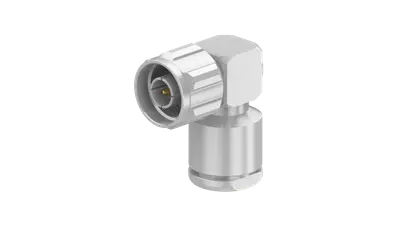

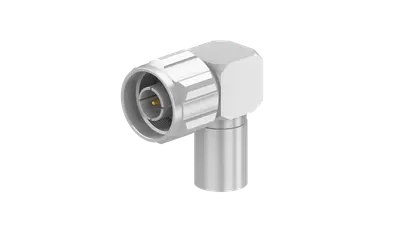

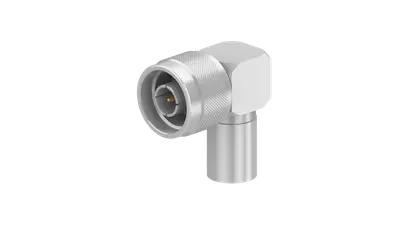

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22642849

16_N-50-7-31/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22650825

16_N-50-7-26/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651441

16_N-50-7-31/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651495

16_N-50-7-36/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22658231

16_N-50-7-231/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22658292

16_N-50-7-231/133_NE

Single packaging

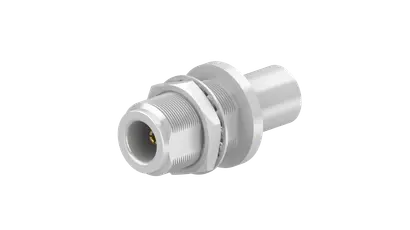

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542323

24_N-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542327

24_N-50-7-15/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22651453

24_N-50-7-15/133_NH

Bulk packaging

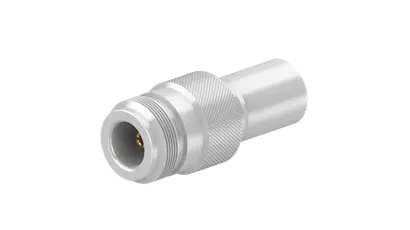

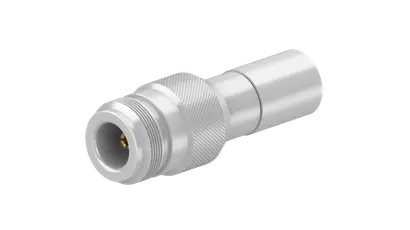

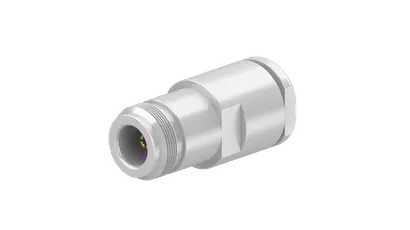

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22542254

21_N-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22542258

21_N-50-7-14/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22649043

21_N-50-7-21/133_UE

Single packaging

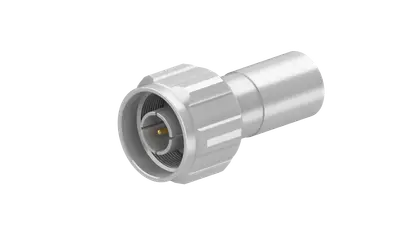

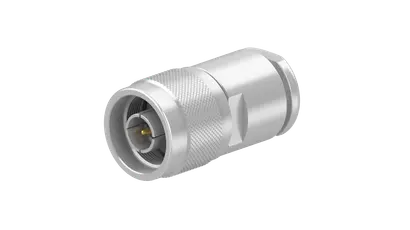

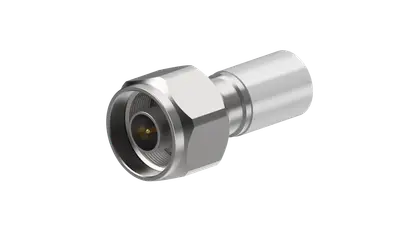

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542117

11_N-50-7-5/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542120

11_N-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22642845

11_N-50-7-44/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22644465

11_N-50-7-44/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22648490

11_N-50-7-5/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

23038297

11_N-50-7-78/19-_NE

Single packaging

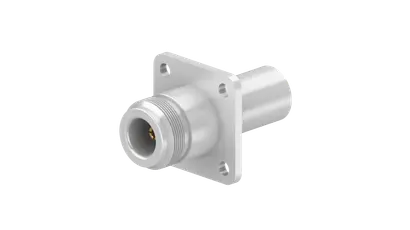

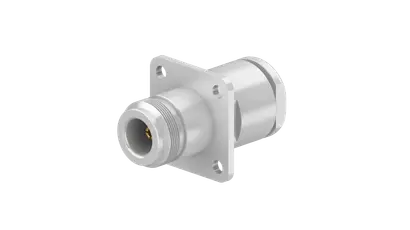

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542366

25_N-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542370

25_N-50-7-14/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

23032410

16_QN-50-7-1/133_NE

Single packaging

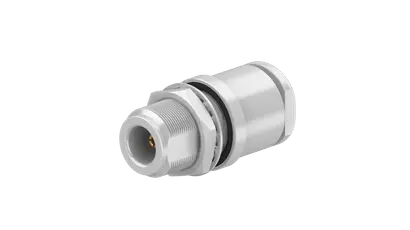

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23033404

24_QN-50-7-2/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23033394

11_QN-50-7-1/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

22651587

16_TNC-50-7-4/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

22640466

11_TNC-50-7-2/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

84005182

11_TNC-50-7-10/133_NE

Single packaging

Taper sleeve 10.7 - 15.5 mm

Taper sleeve 10.7 - 15.5 mm

22641163

78_Z-0-7-2

-
