RG196, 50 Ohm, 1 GHz, 205°C, ø1.83 mm, PFA jacket

Product number 22510049

Identifier RG_196_A/U

Variation: -

General Information

Key features

Mil standard RG cable
Excellent RF performance for precision applications
Suitable for use in application up to 1 GHz
Extended temperature range

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Steel, Copper + Silver plated	Strand-07	0.31 mm
Dielectric	PTFE (Polytetrafluoroethylene)		0.83 mm
Outer conductor	Copper, Silver plated	Braid, 96%	1.33 mm
Jacket	PFA (Perfluoroalkoxy)	RAL 9010 - wh	1.83 mm +/- 0.1 mm	HUBER+SUHNER RG 196 A/U 50 Ohm (production order number)

Electrical data

Mechanical data

Environmental data

Related products

Suitable connectors

COAXIAL CONNECTOR, BMA, 50 Ohm, Right angle bulkhead cable jack (female)

22648087

29_BMA-50-1-1/119_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540362

24_BNC-50-1-1/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22641781

24_BNC-50-1-6/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84011438

24_BNC-50-1-6/133_NH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84106898

24_BNC-50-1-21/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22641777

21_BNC-50-1-4/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540021

11_BNC-50-1-1/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22641759

11_BNC-50-1-5/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22650805

11_BNC-50-1-5/133_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

22658308

16_MCX-50-1-7/133_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

23000443

16_MCX-50-1-7/111_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

84021537

16_MCX-50-1-8/111_TH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

84077540

16_MCX-50-1-8/111_TE

Single packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

22658310

24_MCX-50-1-13/133_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

23005299

24_MCX-50-1-13/111_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable jack (female)

84023972

21_MCX-50-1-11/111_NE

Single packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

22658307

11_MCX-50-1-13/133_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

23002830

11_MCX-50-1-13/111_NH

Bulk packaging

COAXIAL CONNECTOR, MMBX, 50 Ohm, Right angle cable plug (male)

23001748

16_MMBX-50-1-1/111_NE

Single packaging

COAXIAL CONNECTOR, MMBX, 50 Ohm, Straight cable plug (male)

23001743

11_MMBX-50-1-1/111_NE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22645955

16_MMCX-50-1-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22648762

16_MMCX-50-1-1/111_OH

Bulk packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight bulkhead cable jack (female)

22645952

24_MMCX-50-1-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight bulkhead cable jack (female)

22652041

24_MMCX-50-1-6/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable jack (female)

22645288

21_MMCX-50-1-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable jack (female)

84039669

21_MMCX-50-1-1/111_OH

Bulk packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

22645298

11_MMCX-50-1-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

22651666

11_MMCX-50-1-1/111_OH

Bulk packaging

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Straight cable plug (male)

22641146

11_QLA-01-1-8/122_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

84098301

24_QMA-50-1-2/133_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22641805

16_SMA-50-1-1/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22660358

16_SMA-50-1-1/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22649873

24_SMA-50-1-3/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22645871

11_SMA-50-1-4/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22648053

16_SMB-50-1-40/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22648056

16_SMB-50-1-50/111_NE

Single packaging

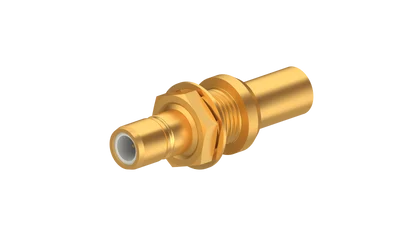

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

22543631

24_SMB-50-1-10/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

22645690

24_SMB-50-1-10/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable jack (female)

22543424

21_SMB-50-1-10/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

22648050

11_SMB-50-1-40/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

22650186

11_SMB-50-1-40/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

22543364

16_SMC-50-1-10/111_NE

Single packaging

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

22644083

16_SMC-50-1-20/111_NE

Single packaging

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

22648283

16_SMC-50-1-10/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMC, 50 Ohm, Straight bulkhead cable jack (female)

22640290

24_SMC-50-1-10/111_NE

Single packaging

COAXIAL CONNECTOR, SMC, 50 Ohm, Straight cable plug (male)

22648629

11_SMC-50-1-10/111_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

21000615

24_TNC-50-1-7/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

84132601

24_TNC-R50-1-14/133_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22641660

11_TNC-50-1-6/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

22640575

25_TNC-50-1-1/133_NE

Single packaging

Missing product name

22641789

Missing product short name

Right angle PCB cable terminator

23013202

86_CT-0-1-1/111_NE

Single packaging

Right angle PCB cable terminator

23013203

86_CT-0-1-1/111_NH

Bulk packaging

Right angle PCB cable terminator

23013226

86_CT-0-1-2/111_NE

Single packaging

Right angle PCB cable terminator

23016860

86_CT-0-1-3/-11_NE

Single packaging

Taper sleeve 1.7 - 2 mm

22544447

78_Z-0-1-1

-

Taper sleeve 1.7 - 2 mm

22544448

78_Z-1-1-1

Missing product short name

Taper sleeve 1.7 - 2 mm

22544449

78_Z-2-1-1

-

Taper sleeve 1.7 - 2 mm

22544450

78_Z-3-1-1

Missing product short name

Taper sleeve 1.7 - 2 mm

22544451

78_Z-4-1-1

Missing product short name

Taper sleeve 1.7 - 2 mm

22544452

78_Z-5-1-1

Missing product short name

Taper sleeve 1.7 - 2 mm

22544453

78_Z-6-1-1

Missing product short name

Taper sleeve 1.7 - 2 mm

22544454

78_Z-7-1-1

Missing product short name

Taper sleeve 1.7 - 2 mm

22544455

78_Z-8-1-1

Missing product short name

Taper sleeve 1.7 - 2 mm

22544456

78_Z-9-1-1

Missing product short name

Product code	RG_196_A/U
Cable family	RG: RG type RF cables
Available as assembly only	No
Cable group	U1

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 1 GHz
Capacitance	97 pF/m
Velocity of signal propagation	69 %
Signal delay	4.84 ns/m
Screening effectiveness	42 dB at frequency 0.001 GHz ... 1GHz
Insulation resistance	100000000 MΩ*m
Operating Voltage (at sea level)	≤ 0.5 kVrms
Test voltage (50 Hz/1 min)	≤ 1 kVrms

Weight	approx. 9.2 g/m
Static bending radius	≥ 10 mm
Repeated bending radius	18 mm
Dynamic bending radius	< 27 mm

Operation temperature	-80 °C ... 205 °C
Installation temperature	-20 °C ... 60 °C
Flame propagation standard	IEC 60332-3
Fire characteristics	contains halogene
