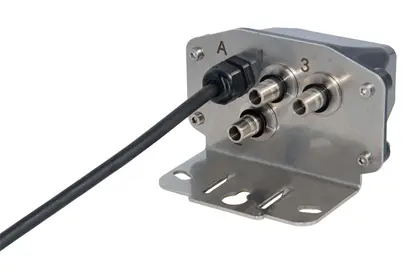

MLUM 6F, SM, cable input, 3x Q-ODC-2, 3x LC UPC uniboot

Name: MLUM 6F, SM, cable input, 3x Q-ODC-2, 3x LC UPC uniboot
SKU: 85157930
Availability: InStock

Product number 85157930

Identifier MLUM-J-10-06-0-LCUUGLND-3QOU1-010-SS

Variation: 10m

Key features

How to use it

General data

Side A / Left

Side B / Right

Fiber Optic Cable

Cable Description	Glass armoured multi fiber loose tube cable
Fiber quantity	12
Fiber type	E9/125A2
CPR class	Dca-s1a,d1,a1
Strain relief	glass-roving
Outer tube diameter	1 x 2.8 mm
Steel armoring	LSFH
Outer jacket diameter	7mm
Outer jacket material	LSFH
Tensile strength during installation	2000 N
Tensile strength in service	1200 N
Min. bending radius during installation	110 mm
Min. bending radius in service	70 mm
Fire propagation standard	IEC 60332-1-2 IEC 60332-3-25 UL 1666

Product family	MASTERLINE Ultimate Micro
Application Area	Outdoor
Fiber quantity	6
UV resistance	EN ISO 4892-2
Impact resistance	IK10
Ingress protection (IP Rating)	IP68
Dimensions (LxWxH)	116mm x 77mm x 117mm
Installation temperature	-10 °C ... 50 °C
Operation temperature	-40 °C ... 75 °C

Entry Port	Cable Gland Ø 4-8mm
Exit port	3x Q-ODC-2 socket
