Low-loss, 50 Ohm, 6 GHz, 85°C, ø10.25 mm, PE jacket

Product number 84102703

Identifier SPUMA_400

Variation: -

General Information

Key features

Halogen free cable with standard dimensions
Ozone, UV and weathering resistance
CPR qualified

How to use it

Railway
Wireless Infrastructure

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Aluminium / Copper	Wire	2.74 mm
Dielectric	SPE (Foamed Polyethylene)		7.24 mm
Outer conductor	Aluminum / PES	longitudinal Foil, 100%	7.4 mm
Outer conductor	Copper, Tin plated	Braid, 71%	8.15 mm
	PE (Polyethylene)	RAL 9005 - bk	10.25 mm +/- 0.1 mm	HUBER+SUHNER SPUMA 400 50 Ohm (production order number)

Electrical data

Mechanical data

Environmental data

Related products

Suitable connectors

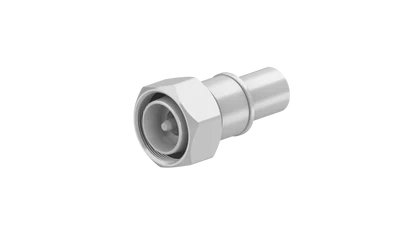

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Straight cable plug (male)

85141072

11_4310-50-7-X2/033_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

23025134

16_716-50-7-15/033_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

85010777

11_716-50-7-31/033_-Y

Tray packaging

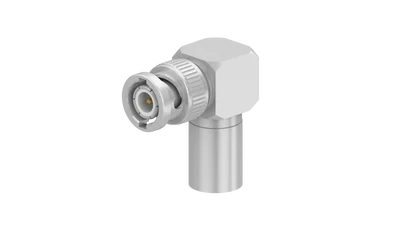

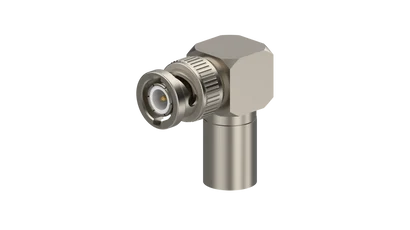

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

85071432

16_BNC-50-7-9/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

85071256

11_BNC-50-7-13/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

84139568

11_C-U50-7-24/133_NE

-

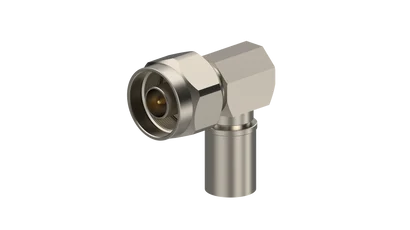

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84076005

16_N-50-7-77/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84078884

16_N-50-7-77/133_NE

-

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84082125

16_N-50-7-50/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85014128

16_N-50-7-53/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85172143

16_N-50-7-55/199_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

84000974

24_N-50-7-31/133_NY

Tray packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85124004

24_N-50-7-34/133_NY

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85182486

24_N-50-7-36/199_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

84119763

21_N-50-7-32/133_NE

Single packaging

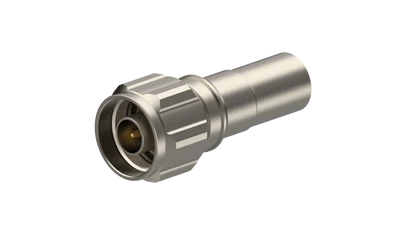

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22660143

11_N-50-7-69/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

23041525

11_N-50-7-74/133_UE-1

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84081597

11_N-50-7-82/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85092396

11_N-50-7-69/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85168370

11_N-50-7-90/199_NE

Single packaging

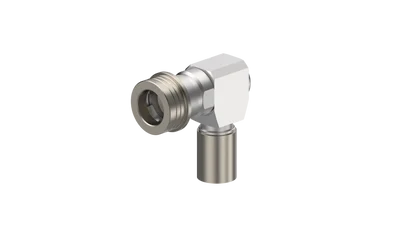

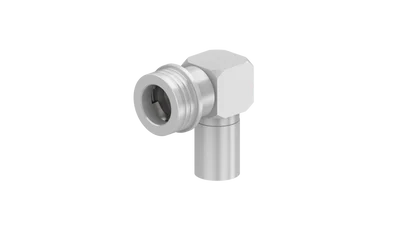

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84022186

16_QN-50-7-5/133_NH

Bulk packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84078879

16_QN-50-7-5/133_NE

Single packaging

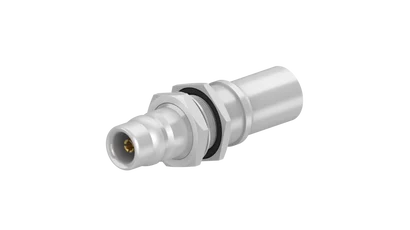

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

84039869

24_QN-50-7-5/133_NH

Bulk packaging

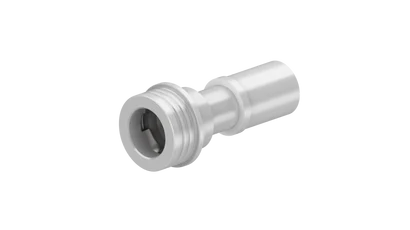

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

84022686

11_QN-50-7-8/133_NH

Bulk packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

84078850

11_QN-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

85018517

16_SMA-50-7-1/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

85018509

11_SMA-50-7-1/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

85167341

11_SMA-50-7-2/199_NE

Single packaging

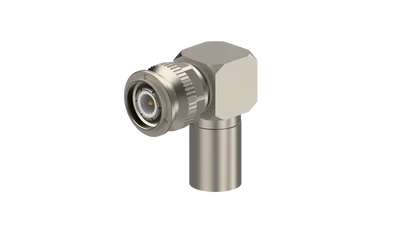

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

84082741

16_TNC-50-7-12/133_NE

Single packaging

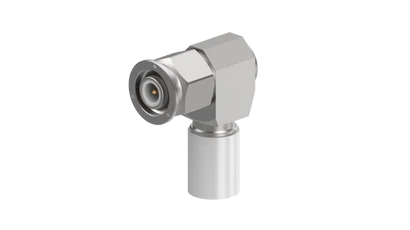

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

85119365

16_TNC-50-7-23/199_NH

Bulk packaging

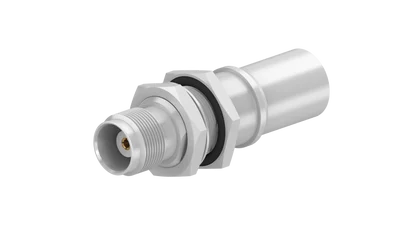

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

85018142

24_TNC-50-7-5/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

85182001

24_TNC-50-7-6/199_NE

Single packaging

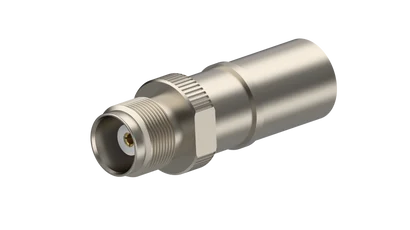

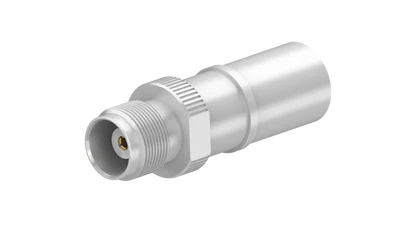

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84128527

21_TNC-50-7-1/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

84077868

11_TNC-50-7-18/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

85016678

11_TNC-50-7-19/133_NE

Single packaging

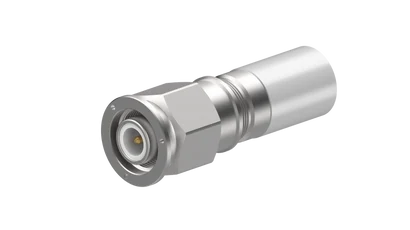

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

85117836

11_TNC-50-7-23/199_NE

Single packaging

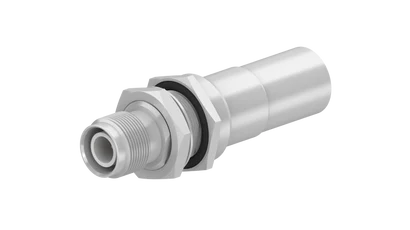

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight bulkhead cable jack (female)

84032531

24_TNC-R50-7-4/133_NE

Single packaging

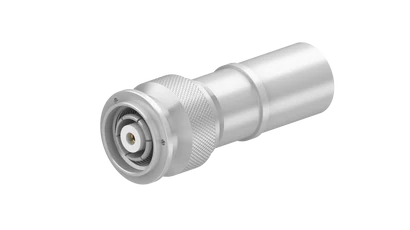

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

84031806

11_TNC-R50-7-13/133_NE

Single packaging

Taper sleeve 10.1 - 15.5 mm

22641162

78_Z-0-7-1

-

Product code	SPUMA_400
Cable family	Spuma: Flexible, low-loss RF cables
Available as assembly only	No
Cable group	U30

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 6 GHz
Capacitance	78 pF/m
Inductance	0.2 µH/m
Velocity of signal propagation	85 %
Signal delay	3.9 ns/m
Screening effectiveness	90 dB at frequency 6GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	4.75 Ω/km
Outer conductor resistance	8.6 Ω/km
Operating Voltage (at sea level)	≤ 1.6 kVrms
Test voltage (50 Hz/1 min)	≤ 3 kVrms

Weight	approx. 94 g/m
Static bending radius	≥ 25 mm
Repeated bending radius	100 mm

Operation temperature	-40 °C ... 85 °C
Installation temperature	-20 °C ... 60 °C
CPR class	Fca
Fire characteristics	free of halogenes, acc. standard IEC 60754
Cold bend test	MIL-C-17 § 4.8.19
