RG178 LSFH, 50 Ohm, 3 GHz, 105°C, ø1.84 mm, RADOX® jacket

RG178 LSFH, 50 Ohm, 3 GHz, 105°C, ø1.84 mm, RADOX® jacket

Product number 23010656

Identifier ENVIROFLEX_178

Variation: -

General Information

Key features

Halogen free alternative to RG cables
Low smoke
Ozone, UV and weathering resistance
UL AWM style 3651

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Steel, Copper + Silver plated	Strand-07	0.305 mm
Dielectric	SPEX (Crosslink Foam PE)		0.82 mm
Outer conductor	Copper, Silver plated	Braid, 95%	1.27 mm
Jacket	RADOX	RAL 5010 - bl	1.84 mm +/- 0.07 mm	HUBER+SUHNER ENVIROFLEX 178 50 Ohm (UL logo) AWM Style 3651 (production order number)

Electrical data

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 3 GHz
Capacitance	94.5 pF/m
Velocity of signal propagation	70.7 %
Signal delay	4.71 ns/m
Screening effectiveness	40 dB at frequency 0.03 GHz ... 3GHz
Insulation resistance	10000000 MΩ*m
Inner conductor resistance	747 Ω/km
Outer conductor resistance	50 Ω/km
Operating Voltage (at sea level)	≤ 1 kVrms
Voltage Rating UL	300 V
Phase vs temperature	8400 ppm within the temperature range -40 ... 100 °C
Phaase vs bending	0.7 °/GHz
Test voltage (50 Hz/1 min)	≤ 2 kVrms

Mechanical data

Environmental data

Related products

Suitable connectors

COAXIAL CONNECTOR, BMA, 50 Ohm, Right angle bulkhead cable jack (female)

COAXIAL CONNECTOR, BMA, 50 Ohm, Right angle bulkhead cable jack (female)

22648087

29_BMA-50-1-1/119_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540362

24_BNC-50-1-1/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22641781

24_BNC-50-1-6/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84011438

24_BNC-50-1-6/133_NH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84106898

24_BNC-50-1-21/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22641777

21_BNC-50-1-4/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540021

11_BNC-50-1-1/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22641759

11_BNC-50-1-5/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22650805

11_BNC-50-1-5/133_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

22658308

16_MCX-50-1-7/133_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

23000443

16_MCX-50-1-7/111_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

84021537

16_MCX-50-1-8/111_TH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

84077540

16_MCX-50-1-8/111_TE

Single packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

22658310

24_MCX-50-1-13/133_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

23005299

24_MCX-50-1-13/111_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable jack (female)

84023972

21_MCX-50-1-11/111_NE

Single packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

22658307

11_MCX-50-1-13/133_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

23002830

11_MCX-50-1-13/111_NH

Bulk packaging

COAXIAL CONNECTOR, MMBX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MMBX, 50 Ohm, Right angle cable plug (male)

23001748

16_MMBX-50-1-1/111_NE

Single packaging

COAXIAL CONNECTOR, MMBX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MMBX, 50 Ohm, Straight cable plug (male)

23001743

11_MMBX-50-1-1/111_NE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22645955

16_MMCX-50-1-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22648762

16_MMCX-50-1-1/111_OH

Bulk packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight bulkhead cable jack (female)

22645952

24_MMCX-50-1-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight bulkhead cable jack (female)

22652041

24_MMCX-50-1-6/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable jack (female)

22645288

21_MMCX-50-1-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable jack (female)

84039669

21_MMCX-50-1-1/111_OH

Bulk packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

22645298

11_MMCX-50-1-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

22651666

11_MMCX-50-1-1/111_OH

Bulk packaging

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Straight cable plug (male)

22641146

11_QLA-01-1-8/122_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

84098301

24_QMA-50-1-2/133_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22641805

16_SMA-50-1-1/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22660358

16_SMA-50-1-1/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22649873

24_SMA-50-1-3/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22645871

11_SMA-50-1-4/111_NE

Single packaging

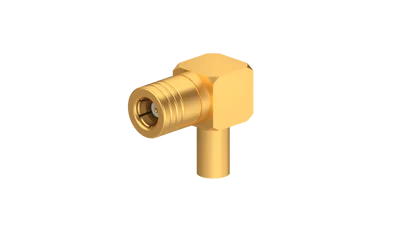

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22648053

16_SMB-50-1-40/111_NE

Single packaging

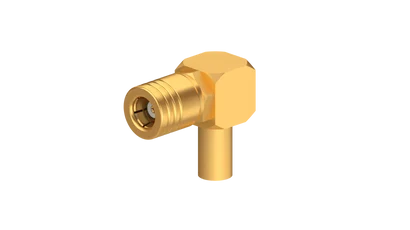

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22648056

16_SMB-50-1-50/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

22543631

24_SMB-50-1-10/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

22645690

24_SMB-50-1-10/111_NH

Bulk packaging

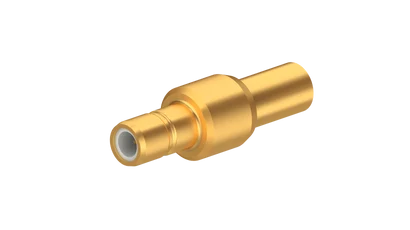

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable jack (female)

22543424

21_SMB-50-1-10/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

22648050

11_SMB-50-1-40/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

22650186

11_SMB-50-1-40/111_NH

Bulk packaging

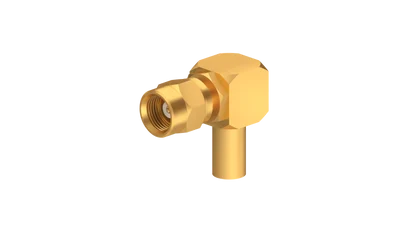

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

22543364

16_SMC-50-1-10/111_NE

Single packaging

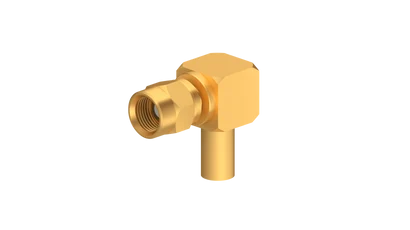

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)
