RG213 LSFH, 50 Ohm, 2 GHz, 105°C, ø10.3 mm, RADOX® jacket

Product number 22510708

Identifier GX_07272

Variation: -

General Information

Key features

Halogen free alternative to RG_213
Suitable for use in applications up to 2 GHz
Low smoke
Ozone, UV and weathering resistance

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper	Strand-07	2.25 mm - 0.15 mm
Dielectric	PEX (Polyethylene cross-linked)		7.25 mm
Outer conductor	Copper, Silver plated	Braid, 95%	8.15 mm
Jacket	RADOX	RAL 9005 - bk	10.3 mm +/- 0.15 mm	HUBER+SUHNER GX 07272 50 Ohm (production order number)

Electrical data

Mechanical data

Environmental data

Related products

Suitable connectors

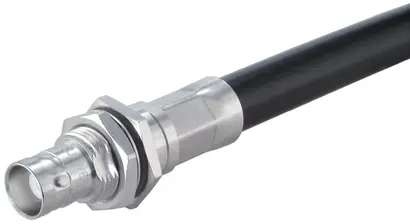

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable jack (female)

22544092

21_716-50-7-1/003_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

22544073

11_716-50-7-1/003_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

22544075

11_716-50-7-3/003_-E

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22651588

16_BNC-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540415

24_BNC-50-7-3/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540145

11_BNC-50-7-1/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22543766

11_BNC-50-7-7/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable jack (female)

22543427

21_C-50-7-3/122_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541137

11_C-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22642848

16_N-50-7-30/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22650825

16_N-50-7-26/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651494

16_N-50-7-29/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542323

24_N-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542326

24_N-50-7-14/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22542254

21_N-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22542257

21_N-50-7-13/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542117

11_N-50-7-5/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542120

11_N-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22642844

11_N-50-7-43/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22645907

11_N-50-7-43/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22648490

11_N-50-7-5/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542366

25_N-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542369

25_N-50-7-13/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

23033399

16_QN-50-7-2/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23033396

11_QN-50-7-3/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

22651587

16_TNC-50-7-4/133_NE

Single packaging

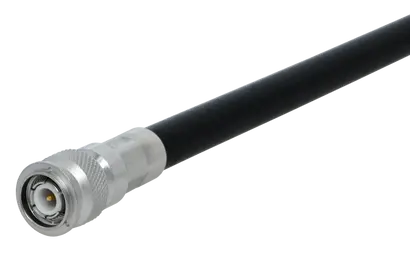

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22640466

11_TNC-50-7-2/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22643778

11_TNC-50-7-5/133_UE

Single packaging

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

22542728

11_UHF-0-7-4/002_-E

Single packaging

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

22542733

11_UHF-0-7-5/002_-E

Single packaging

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

22542744

11_UHF-0-7-17/033_-E

Single packaging

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

22542747

11_UHF-0-7-19/023_-E

Single packaging

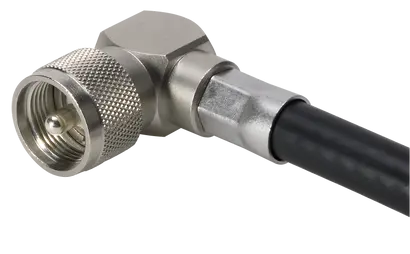

COAXIAL CONNECTOR, UHF, X Ohm, Right angle cable plug (male)

22542766

16_UHF-0-7-4/022_E

Single packaging

COAXIAL CONNECTOR, UHF, X Ohm, Straight cable jack (female)

22542775

21_UHF-0-7-4/033_-E

Single packaging

Taper sleeve 10.1 - 15.5 mm

22641162

78_Z-0-7-1

-

Product code	GX_07272
Cable family	GX: RF cables with cross-linked PE dielectrics
Available as assembly only	No
Cable group	U29

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 2 GHz
Capacitance	101 pF/m
Velocity of signal propagation	66 %
Signal delay	5.03 ns/m
Screening effectiveness	41 dB at frequency 0.001 GHz ... 2GHz
Insulation resistance	10000000 MΩ*m
Inner conductor resistance	5.74 Ω/km
Outer conductor resistance	3.7 Ω/km
Operating Voltage (at sea level)	≤ 5 kVrms
Test voltage (50 Hz/1 min)	≤ 10 kVrms

Weight	approx. 161 g/m
Static bending radius	≥ 50 mm
Repeated bending radius	100 mm
Dynamic bending radius	< 150 mm

Operation temperature	-40 °C ... 105 °C
Installation temperature	-20 °C ... 60 °C
Flame propagation standard	IEC 60332-1 EN 60332-1-2 IEC 60332-3-25 EN 50266-2-5
Fire characteristics	free of halogenes, acc. standard IEC 60754
Smoke test	EN 61034-2
