Coaxial splitters & couplers overview

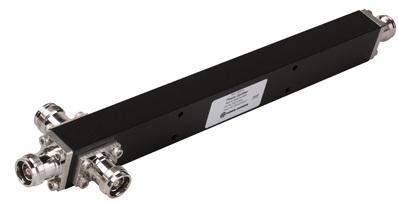

HUBER+SUHNER’s broadband directional coupler portfolio is designed for indoor applications and covers the frequency range from 380 or 689 to 2700 MHz. This extremely wide frequency range allows for use with multiband antennas, leaky cable systems and wireless base stations for cellular, WiFi 2.4 GHz and TETRA security networks. The couplers are ideally suited for multi-carrier/multi-operator coupling and combiner networks. Directional couplers are available with N and 4.3-10 interfaces.

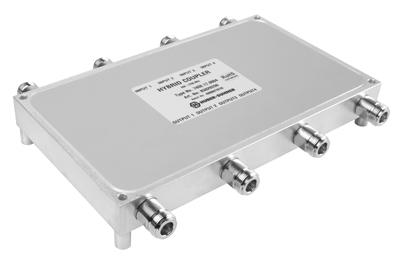

The HUBER+SUHNER series of broadband hybrid and hybrid matrix couplers are ideally suited for equally combining multi-carrier/multi-operator systems. They enable the equal division or combination of two signals in the cellular and WiFi 2.4 GHz wireless bands. The remaining outputs need to be terminated with a suitable 50 ohm termination. A 2x1 hybrid coupler with integrated cable load is also available. Hybrid couplers are available with N, 7/16 and 4.3-10 interfaces.

Matching pads are designed to match 50 ohm with 75 ohm impedance of two different transmission lines of while preserving signal integrity.

• Low insertion loss
• High repeatability
• Low return loss

Low loss reactive splitters are used to distribute RF signals to multiple transceiver antennas or radiating cables. The RF power is evenly split to all outputs with excellent amplitude and phase balance. Only the common port is matched to 50 ohms. The broad range of reactive power splitters supports cellular, WiFi 2.4 and 5 GHz, and TETRA security bands. Reactive power splitters are available with N, 7/16 and 4.3-10 interfaces.

Power dividers are designed to split a RF signal equally into two output signals with an insertion loss of 6 dB.

• Broadband down to DC
• Very low return loss
• Cost effective solution to tap off a signal
• Very compact

The HUBER+SUHNER series of broadband Wilkinson type combiners/splitters is ideally suited for equally combining or dividing low power multi-carrier/multi-operator signals. Each input and output port is matched to 50 ohms. The frequency range covers 380 or 698 to 2700 MHz. The Wilkinson splitters support cellular, WiFi 2.4 and 5 GHz, and TETRA security bands. Wilkinson splitters are available with an N interface.
