High-power connectors

keyboard_arrow_up

In an MRI scanner a generator sends high power RF pulses to the Transmit Coils in order to stimulate the spins in the patient. Our high power connectors are suitable for the RF line between the generator and the Transmit Coils.

High-power cables

keyboard_arrow_up

HUBER+SUHNER high power cables offer proper radio frequency performance at a low profile (small diameter)

Signal cabling

keyboard_arrow_up

As the spins relax, they emit a MR signal with is detected by the receive coils. Our small form-factor cables and connectors are suitable for the receiver circuitry.igh power connectors are suitable for the RF line between the generator and the Transmit Coils.

Products

Hand formable (RG402) 50Ohm, 33GHz, 165°C, ø3.58mm no jacket 22511635 Sucoform hand-formable microwave cables have a tin-soaked copper braid for the outer conductor, giving them outstanding hand-formability and a distinct mechanical advanatage over semi-rigid cables

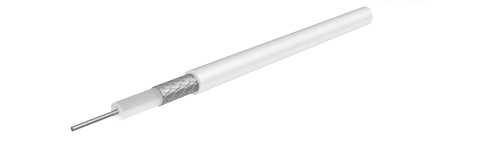

Hand formable, 50 Ohm, 6 GHz, 165°C, ø6.2 mm, FEP jacket 85071854 Sucoform hand-formable microwave cables have a tin-soaked copper braid for the outer conductor, giving them outstanding hand-formability and a distinct mechanical advanatage over semi-rigid cables

Hand formable (RG401) 50Ohm, 18GHz, 165°C, ø6.3mm, no jacket 84007938 Sucoform hand-formable microwave cables have a tin-soaked copper braid for the outer conductor, giving them outstanding hand-formability and a distinct mechanical advanatage over semi-rigid cables

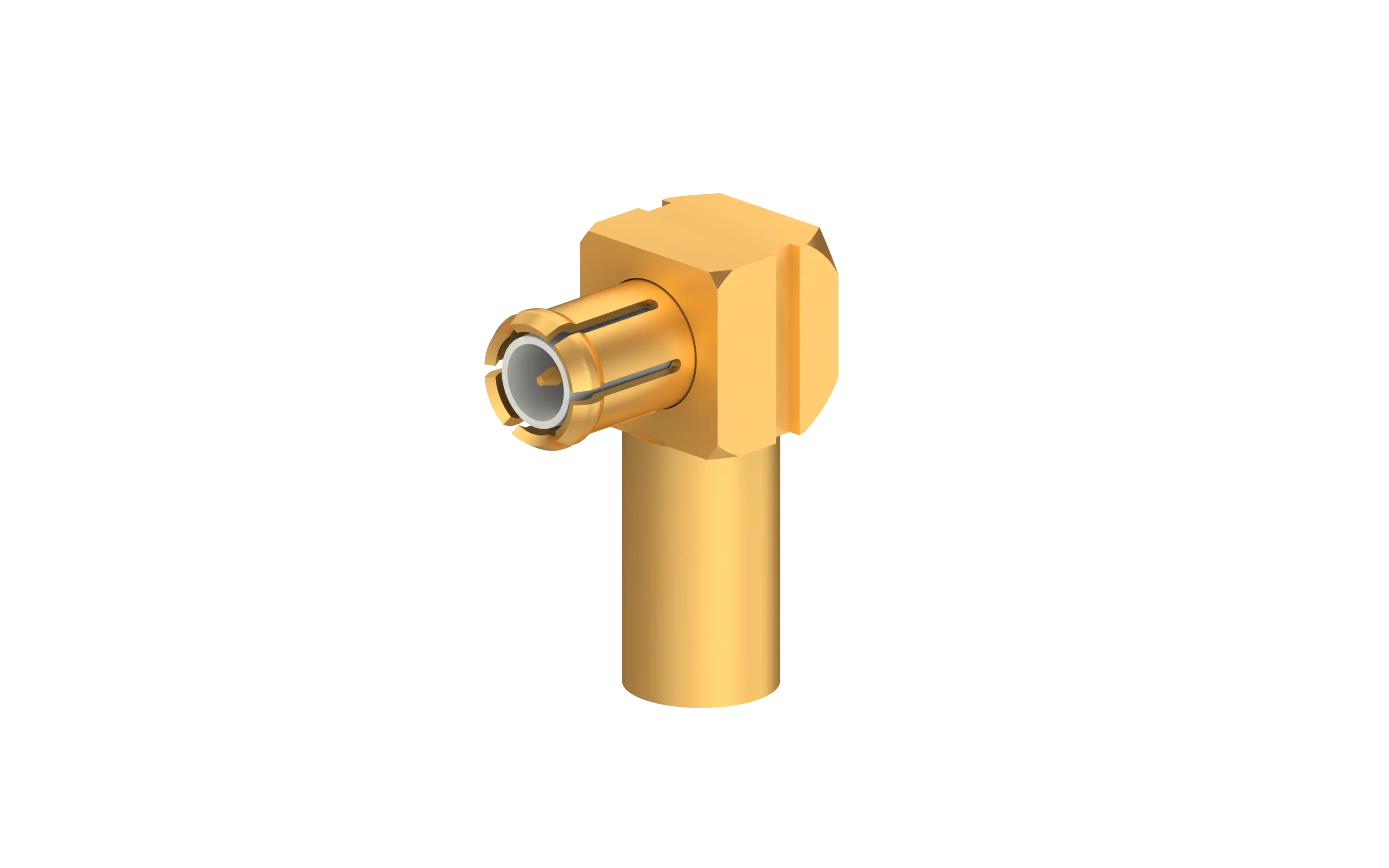

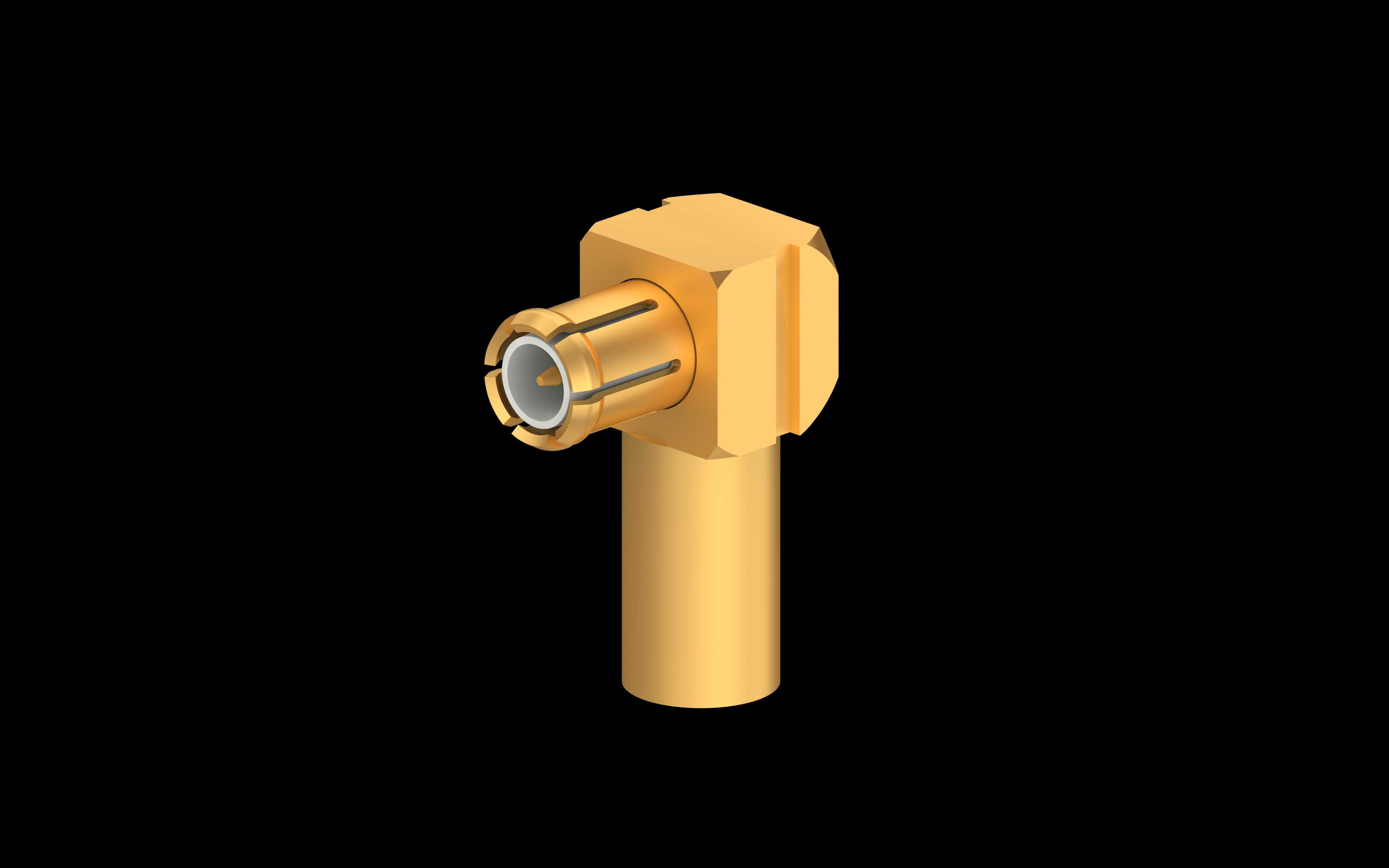

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male) 84077540 MCX, a snap-on connector for coax-to-PCB connection up to 6GHz. MCX is a easy to connect and offers an excellent blend of size, weight, durability and performance.

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight PCB jack (female) 23024098 MCX, a snap-on connector for coax-to-PCB connection up to 6GHz. MCX is a easy to connect and offers an excellent blend of size, weight, durability and performance.

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male) 23024088 MCX, a snap-on connector for coax-to-PCB connection up to 6GHz. MCX is a easy to connect and offers an excellent blend of size, weight, durability and performance.

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male) 84021537 MCX, a snap-on connector for coax-to-PCB connection up to 6GHz. MCX is a easy to connect and offers an excellent blend of size, weight, durability and performance.

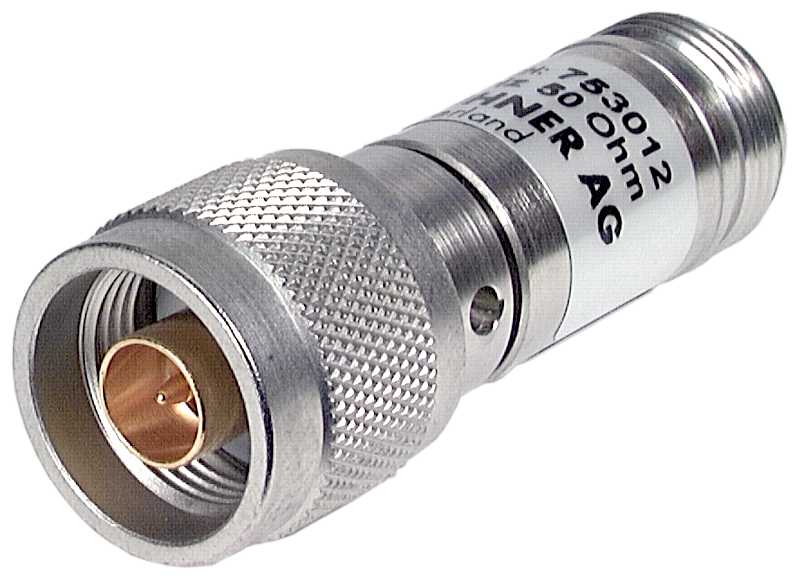

COAXIAL FIXED ATTENUATOR, 50 Ohm, 20 dB, N 22550186 Attenuators are used to reduce the power of a signal without causing distortion of its waveform. They are used in many test and measurement and communication applications.
