3D Simulation Models Service

Encrypted 3D component models

Maximizing the performance for HUBER+SUHNER board connectors/transitions

Service overview

Only by using an optimised footprint the full performance of the connectors can be unleashed. HUBER+SUHNER offers optimised connector/board solutions:


  • 3D field simulation
  • Optimised footprints (incl. connector) as gerber files


HUBER+SUHNER offers encrypted 3D component models for the single and multicoax PCB connector portfolio. These 3D component models are compatible with ANSYS HFSS and/or Cadence Clarity.

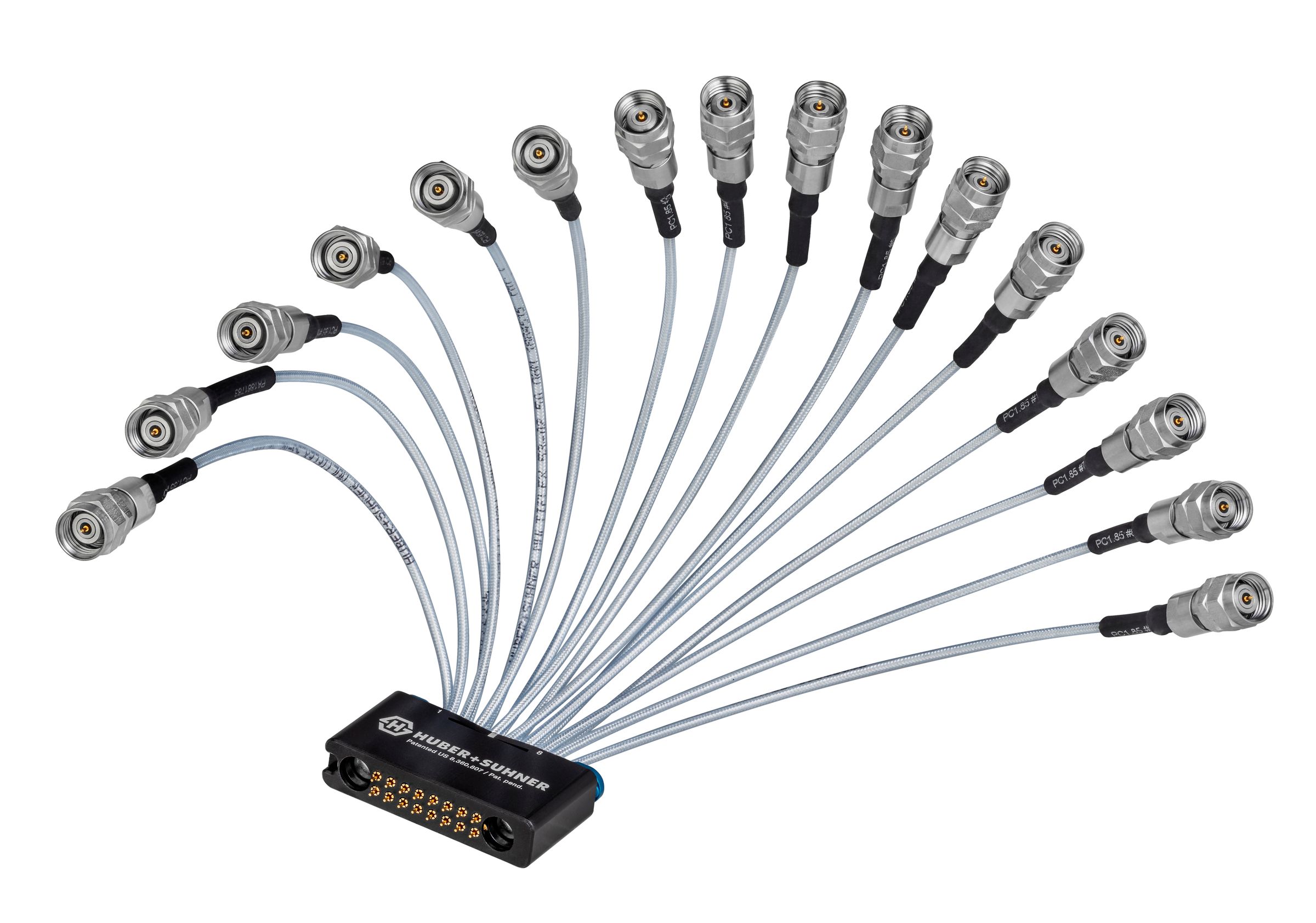

HUBER+SUHNER has pioneered multicoax solutions for applications up to 90 GHz

In a world where performance, speed and density matter, our multicoax connector solutions are the perfect fit.


The small form factor and outstanding electrical characteristics with highest repeatability combined with reliable mating and ease of use make MXP and MXPM an excellent solution for bench- top and system testing. Both high density cabling solutions can also be used as an interconnect within automated semiconductor test equipment.

Restrictions on the use of the data

PLEASE CAREFULLY READ THE FOLLOWING RESTRICTIONS BEFORE USING OUR DATA ABOUT THE PRODUCTS ("DATA"). IF YOU DO NOT AGREE TO THE RESTRICTIONS, PLEASE DO NOT USE THE DATA. USE OF ANY PART OF THE DATA INDICATES YOUR COMPLETE AND UNCONDITIONAL ACCEPTANCE OF THE RESTRICTIONS SET FORTH BELOW.


  • You may only use this DATA for the exclusive purpose it has explicitly been provided for by HUBER+SUHNER, specifically for design and optimization of PCB layouts.
  • We are under no obligation to indemnify, defend or hold you harmless from and against any claims asserted by any third party pertaining to this DATA. You agree that you will not hold HUBER+SUHNER liable for any damages, liabilities, losses, costs and expenses (including attorneys’ fees) arising out of or relating to the use of or inability to use the DATA and you hereby explicitly waive any right to indemnification.
  • We expressly disclaim all implied warranties regarding this data, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.
  • You acknowledge and agree that the ownership and all intellectual property rights (including but not limited to copyright) of the DATA are held by HUBER+SUHNER. You shall not redistribute or reproduce the DATA without prior consent of HUBER+SUHNER.
  • The DATA is subject to change from time to time or products may be discontinued without notice. Please check the latest version.
  • For details about a product, please refer to HUBER+SUHNER catalog or approval specifications for the product

Connector types available with 3D component model

MMPX proprietary single ended:

  • 82_MMPX_S50_0_2
  • 92_MMPX_S50_0_1
  • 96_MMPX_50_0_2
  • 96_MMPX_50_0_3


MXP proprietary multicoax:

  • 1x8A_MXP40
  • 1x8A_MXP50
  • 2x8A_MXP40
  • 2x8A_MXP50


MXPM proprietary multicoax:

  • 1x8A_MXPM70/90
  • 2x8A_MXPM70/90


MXPD proprietary multicoax:

  • 1x8A_MXPD70 straight
  • 1x8A_MXPD70 right angle

PC 1.0 compression mount

  • 82_PC1_S50_0_200
  • 92_PC1_S50_0_200


PC 1.85 compression mount

  • 82_PC185_S50_0_200
  • 82_PC185_S50_0_201
  • 92_PC185_S50_0_200


PC 2.4 compression mount

  • 82_PC24_S50_0_200
  • 82_PC24_S50_0_201
  • 92_PC24_S50_0_200

SK (2.92 mm) compression mount

  • 82_SK_S50_0_200
  • 82_SK_S50_0_201
  • 92_SK_S50_0_200


SMA compression mount

  • 82_SMA_S50_0_200
  • 82_SMA_S50_0_201
  • 92_SMA_S50_0_200


If you would like to request 3D component models to be sent to you, kindly send us an e-mail with the following information.


  • First name
  • Last name
  • Company
  • Job title
  • Email address
  • Which country you are based in
  • The connector type you require (as stated above)
  • The Ansys HFSS or cadence Clarity release version you are currently using


Consent:

By sending us this email, you agree:


  • to the ‘Restrictions on the use of data’ as stated above.
  • that HUBER+SUHNER stores the data provided so that the request can be answered.
  • that you have read and accepted the Data Protection Statement.
